Raptor 21S
Raptor Spiders

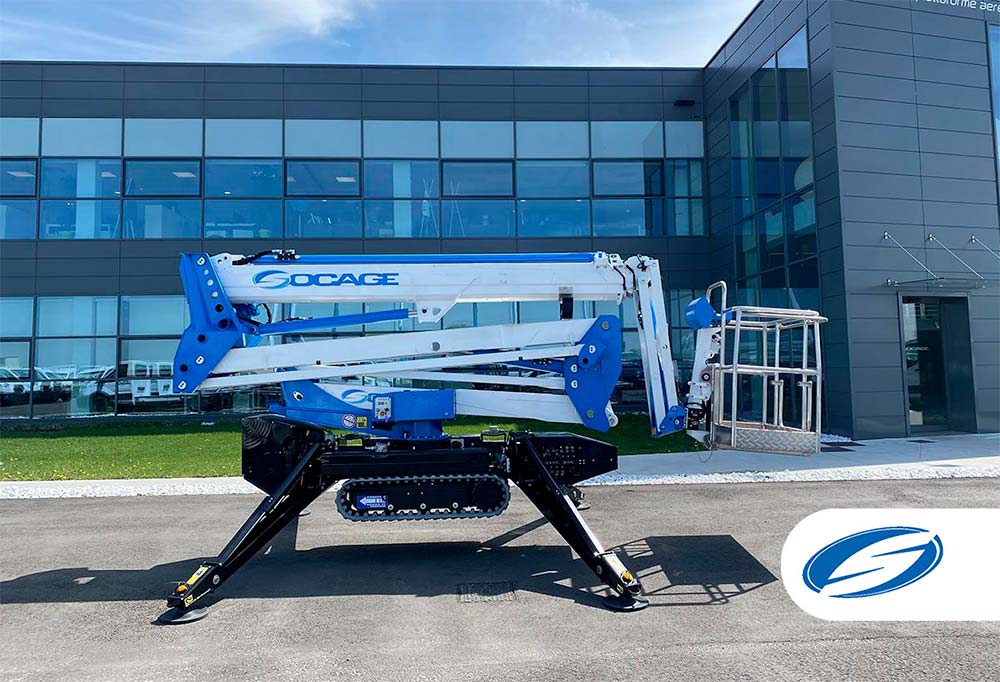

The RAPTOR 21S is a tracked lift with a maximum working height of 20.80 m and a maximum lateral outreach of 10.30 m.
Its basket payload is 230 kg (2 operators + material) in the whole working area without any limitation. It is fitted with automatic stabilization and automatic closing.
This crawler platform is equipped as standard with a multifunctional remote control capable of allowing not only the movements of the aerial part, but also greater safety and comfort for the operator.
Greater strength and stability
Simplicity and reliability
Bi-energy
Extendable tracks
Versatility with Bi-energy
Sustainable platform of 0% emissions, bi-energy as standard, in addition to the diesel engine incorporates a 230V electric motor that allows working without emissions, essential in some enclosed spaces such as churches, airports or factories.
The tracked lift RAPTOR 21S has a reduced weight and dimensions. It is equipped with extendable tracks and it is fitted with white non-marking tracks designed for use in enclosed spaces. The translation of the tracks has three different speeds.
The rotation of the aerial part of 380º and the hydraulic jib next to the double articulated arm allow a wide work maneuverability.
Standard equipment
Standard accessories
A comprehensive list of the accessories included with the machine.
Data sheet
Data sheet - Undercarriage hydraulically expandable
- White non marking tracks
- Electric hour-counter
- Manual hand pump
- 230V electric socket in the basket
- Multifunction remote control
- Auxiliary electric pump 230V-50Hz
- Flanged holding valves
- Diesel engine
- Automatic closing
- Automatic stabilization
- Outrigger plates
Size
All the relevant machine dimensions.
Technical info
Outriggers
Z+Z
Working height
20,80 m
Basket height
18,80 m
Max outreach
10,30 m
Basket load capacity
230 kg
Basket size
1400 X 700 X 1100 mm
Controls
Electro-Hydraulic
Turret Rotation
380°
GVW
2,6 ton
Size
2845 x 2855 mm 3010 x 3190 mm
Basket rotation
60° + 60°
Lifting hook
230 kg
Raptor 21S Australian Official Suppliers
Altequip is proud to be the exclusive Australian supplier of Socage elevated work platforms (EWPs), including the versatile Raptor 21S. This platform is engineered for both high performance and efficiency, offering a dependable solution for a wide range of applications. The Raptor 21S is particularly well-suited for professionals working in industries such as construction, maintenance, and industrial projects. It delivers the reach and precision needed for tasks that demand stability, all within a compact footprint.
Designed to perform in tight spaces while providing a reliable working height, the Raptor 21S is the ideal platform for those who need to manoeuvre through narrow aisles or reach elevated points in challenging environments. Whether you’re working in a warehouse, on a construction site, or in any other area requiring versatility, the Raptor 21S is built to provide the power and flexibility needed to complete the job safely and efficiently.
As an authorised Socage distributor, Altequip ensures that all Raptor 21S platforms meet Socage’s rigorous quality standards, guaranteeing that your equipment is built to last. We also provide direct manufacturer support, ensuring that every platform we sell comes with the backing of the industry’s best. Our knowledgeable team is here to assist with selecting the right equipment for your unique needs, making sure you get the most out of your investment.
Raptor 21S Servicing and Maintenance
Altequip, based in Brisbane, is your trusted partner for servicing and maintaining your Raptor 21S. We understand the importance of keeping your equipment in optimal condition for both safety and performance. Our servicing team provides routine inspections, maintenance, and repairs using only genuine Socage parts to ensure that your platform runs at peak performance.
With regular servicing, your Raptor 21S will stay compliant with Australian safety regulations and continue to deliver reliable performance. Whether you’re managing a fleet or operating a single unit, Altequip offers tailored solutions to fit your needs and ensure minimal downtime.
For professional servicing and expert support, contact Altequip today!
