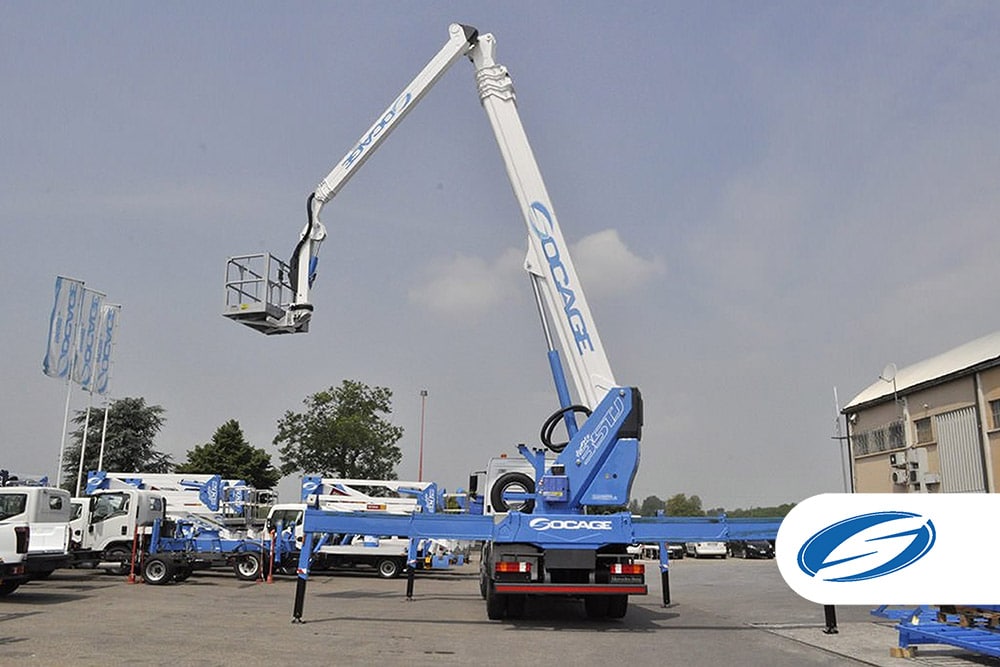

ForSte 35TJ
Truck-Mounted Platform
Altequip is proud to present the forSte 35TJ, a telescopic truck-mounted boom lift with an articulated jib, designed for installation on trucks weighing from 18 tons. This model provides a working height of 35m and a horizontal reach of 30m, with an impressive load capacity of 400 kg (accommodating 4 operators and materials). Its compact design makes it ideal for navigating difficult industrial and urban locations.
The forSte 35TJ is equipped as standard with a multi-zone stabilization system, allowing the operator to choose the most suitable option based on available space and specific needs. The electronic control system for the platform automatically calculates the safe work area, adjusting according to the position of the four stabilizers.
With our headquarters in Brisbane, Altequip is Australia’s official Socage dealer. If you’d like to know more about the forSte 35TJ or would like to book a demonstration, please get in touch today.
Maximum load capacity 400 kg
Robust and Mobile
Multi-zone stabilization system
Compact dimensions
A Tough, Mobile EWP
The Ste 35TJ truck-mounted boom lift can be outfitted with a hydraulic winch on the boom, capable of lifting 500/1000 kg, which can be used when the aluminium basket is removed.
With a 700º rotation range, the aerial section helps improve work efficiency by reducing the need for repositioning.
The aluminium basket measures 2300 x 900 x h 1100 mm, with a hydraulic expansion to 3300 mm, increasing the available working area. It also provides 360º rotation (180° left + 180° right), offering versatile positioning options for various tasks.
Emergency operation is facilitated by a radio-controlled remote, allowing the operator to position themselves for the best visibility as they manoeuvre.
Standard equipment
Standard accessories
A comprehensive list of the accessories included with the machine.
TECHNICAL FEATURES
TECHNICAL FEATURES - Extendable aluminum basket with dimensions 2300/3300 x900x1100 mm
- Basket rotation 360°
- Rotation turret 00°
- Possibility to mount winch
- Automatic stabilization
- Partially stabilized work areas
- Auto lock
- Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
- Intercom with headphones for basket-ground communication
- Main and auxiliary motor start / stop control from the basket
- Multifunction radio remote control for emergency control of the aerial part from the ground and stabilization
- Electric hour counter
- PTO automatic cut-off
- N ° 2 fixed roto-lamp on the vehicle cabin
- Socket 230V/400V
- Heat exchanger on the hydraulic system
- 2 folding sides, 2 fixed (h 150 mm)
- 4 plates to stand to the ground(700 x 700 x 50 mm)
- Anti-corrosion treatment on unpainted components
- Aerial part painting: white RAL 9016
- Frame and hydraulic cylinders painting: blue RAL 5015
- LED lights under the basket
- Working lights on the basket
- Working lights on the aerial part
- Led rotating beacon on the truck cab
SAFETY DEVICES
SAFETY DEVICES - Emergency and stop button
- Cross-check of open stabilizers
- Load limiter in the basket
- Moment limiter with double safety and control of correct operation
- Multi axial device for visual control of frame stabilization
- Emergency descent with electric pump (in the absence of the auxiliary motor)
- Rotation brake of the turret with automatic insertionRotation brake of the turret with automatic insertion
- Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
- Multifunction radio control for emergency control
- Automatism for rotation lock with extension of the stabilizers on one side only
- Chassis flatness sensor
- Flanged block valves

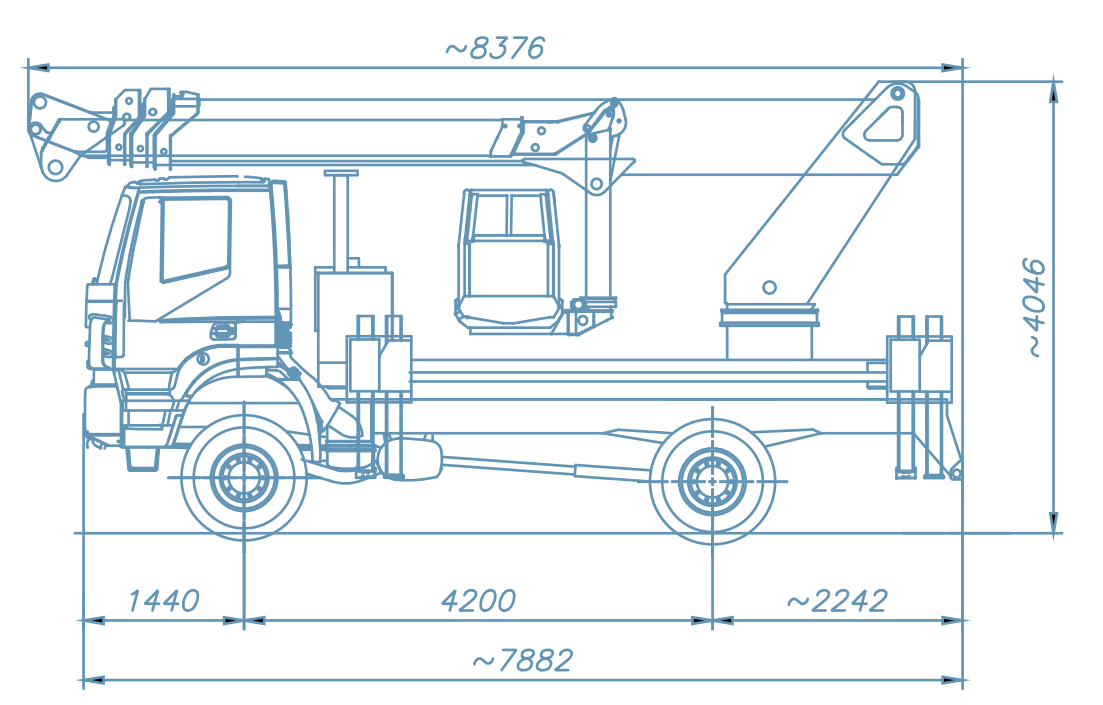

Size
All the relevant machine dimensions.
Technical info
Outriggers
HE+HE
Working height
35,00 m
Basket height
33,00 m
Max outreach
30,00 m
Basket load capacity
400 kg
Dimensions
230/330x90x110 cm
Controls
Electric
Turret rotation
700°
GVW
18ton
ForSte 35TJ Australian Official Suppliers
Altequip is proud to be Australia’s exclusive supplier of ForSte elevated work platforms (EWPs), featuring the robust ForSte 35TJ. Designed for heavy-duty tasks and challenging environments, the ForSte 35TJ offers exceptional stability, reach, and power, making it an ideal choice for professionals across multiple industries such as construction, maintenance, mining, and infrastructure. Whether you’re working on high-rise construction, heavy machinery maintenance, or large-scale projects, the ForSte 35TJ is built to provide unmatched performance, even in the most demanding conditions.
The ForSte 35TJ stands out with its high lifting capacity and extended reach, ensuring that you can access difficult-to-reach areas with ease and complete complex tasks safely. Its design prioritises operator safety and stability, allowing you to work efficiently in varied and often harsh environments. As a reliable, heavy-duty platform, the ForSte 35TJ ensures that professionals can perform with confidence and productivity, reducing downtime and enhancing the effectiveness of operations.
As an authorised distributor of ForSte, Altequip offers expert consultation and provides you with the right solutions tailored to your project needs. You also gain access to manufacturer-backed support and nationwide service, ensuring you get the most from your ForSte 35TJ throughout its lifespan. With Altequip, you can trust that your equipment will meet the highest standards of performance and safety.
ForSte 35TJ Servicing and Maintenance
Located in Brisbane, Altequip provides specialised servicing and maintenance for the ForSte 35TJ, ensuring that your equipment stays in optimal condition and performs reliably throughout its lifecycle. Our services include routine inspections, preventative maintenance, and repairs, all using genuine ForSte parts to maintain the integrity and functionality of your platform.
Regular servicing is essential for maximising longevity and ensuring compliance with Australian safety standards. By choosing Altequip for your ForSte 35TJ servicing, you can reduce downtime and enhance the performance of your equipment.
Contact Altequip today for trusted servicing and expert support!
